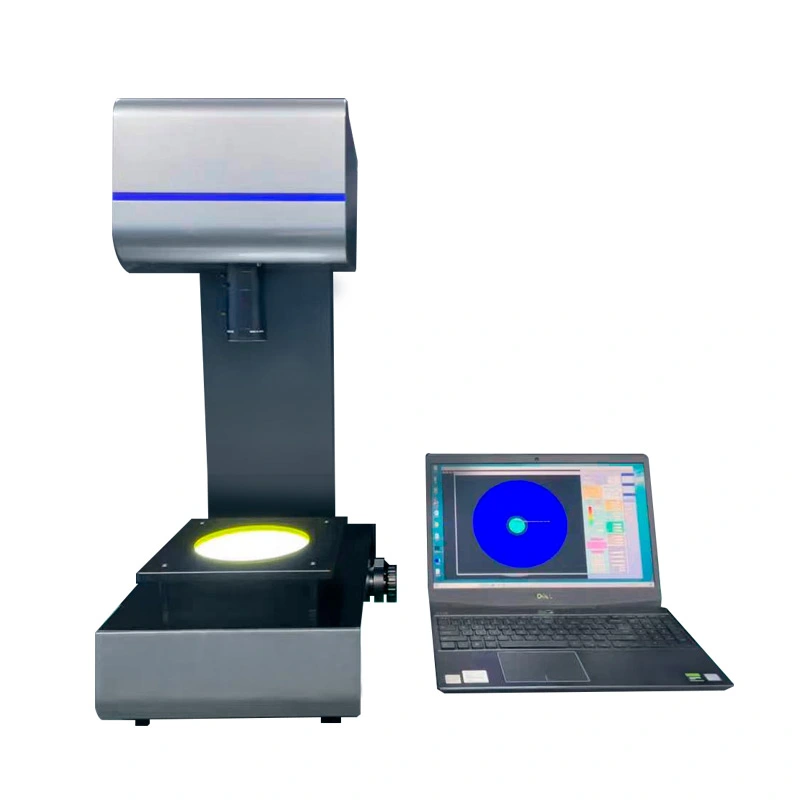

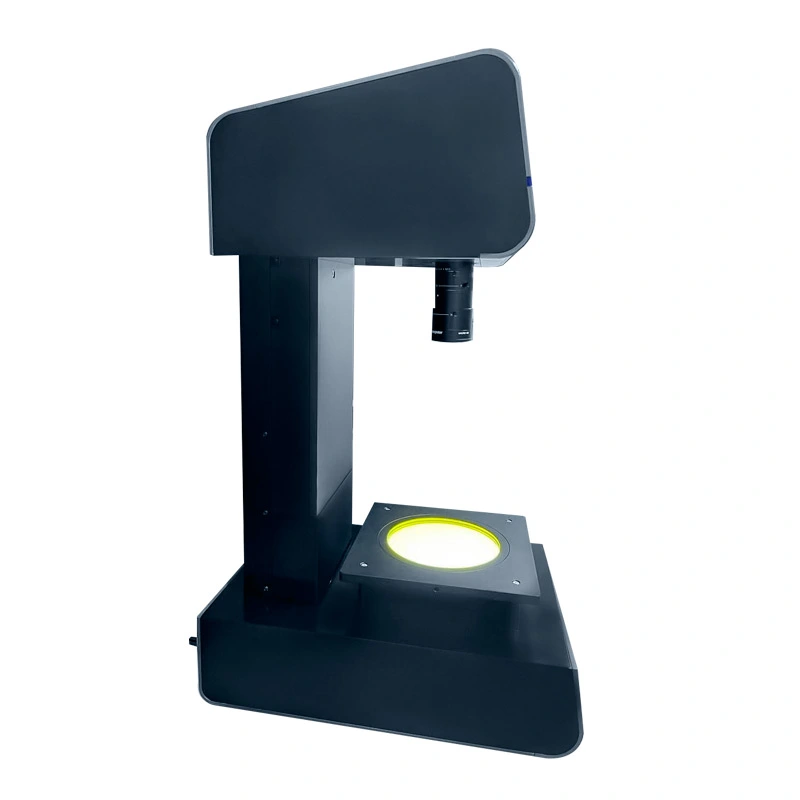

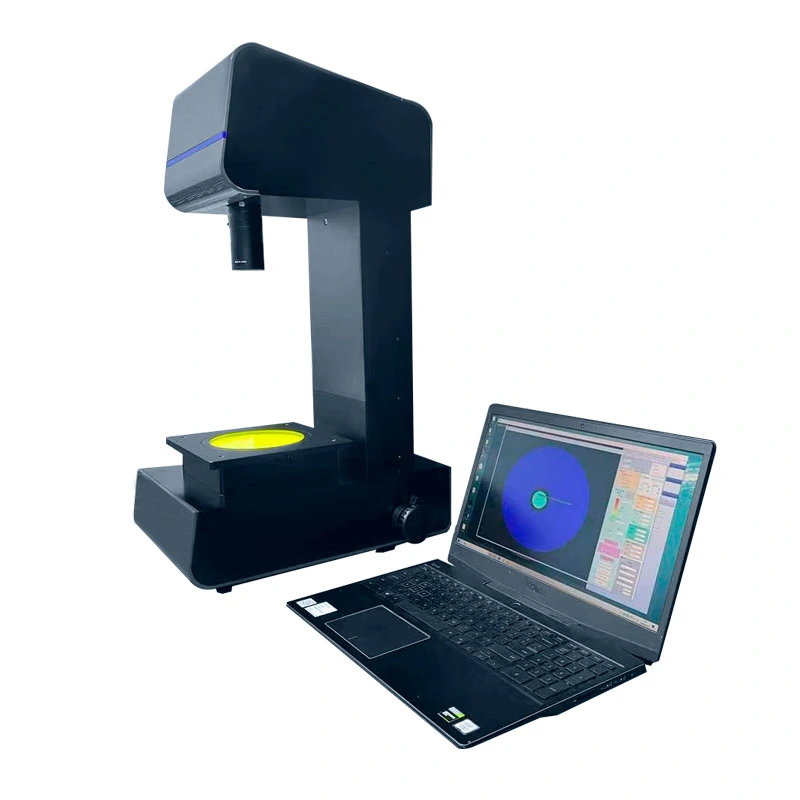

Fully Automatic Polarimeter 280

It is an advanced automatic stress measurement device that measures the retardation which displays birefringence phenomenon under polarized light. The light travels through the polarizer to become circular polarized light. When the stressed sample is placed, the slow and fast axis of birefringence produces the retardation, and the outgoing light becomes elliptical polarized light. Through the phase retarder and polarization camera, the phase and axial angle change of the polarized light under the influence of stress are measured, thus calculating the sample stress value and the slow/fast axis direction.


Features of Fully Automatic Polarimeter NMV-280


  • Full-automation: One-key automatic stress measurement within the whole viewing field;

  • Enlarged retardation measuring range: Adopt specific optical components to enlarge the retardation range up to 280nm;

  • High efficiency: A single measurement can be finished in 15s under high-speed mode;

  • Strong result analysis function:

    ① 3D stress image within viewing field

    ② 2D Area stress analysis

    ③ 1D line stress analysis

    ④ Point stress analysis

  • High accuracy: Made with high-quality materials and advanced technology to ensure high repeated measurement accuracy;

  • Adjustable viewing field: The measurement viewing field can be adjusted based on sample size to ensure high-resolution images.


Specifications


Model No.

NMV-280

Measurement area

diameter 137mm

Measurement height

150-300mm (adjustable)

Detection method

rotating analyzer method

Measurement wavelength

570nm

Retardation measuring range

0~285nm

Repeated measurement accuracy

±1nm

Effective pixels

1000*1000pixel

Light source

570nm high-brightness LED

Power supply

AC 100~240V 50/60Hz 0.35A

Accessories

cable, power adapter

Support system

Windows10

Use environment

indoor use

Environment temperature

10℃~40℃

Environment humidity

25%~85%

Overall size

429(L)*325(W)*762(H)mm

Net weight

about 30 KG
