Glass Thickness Gauge

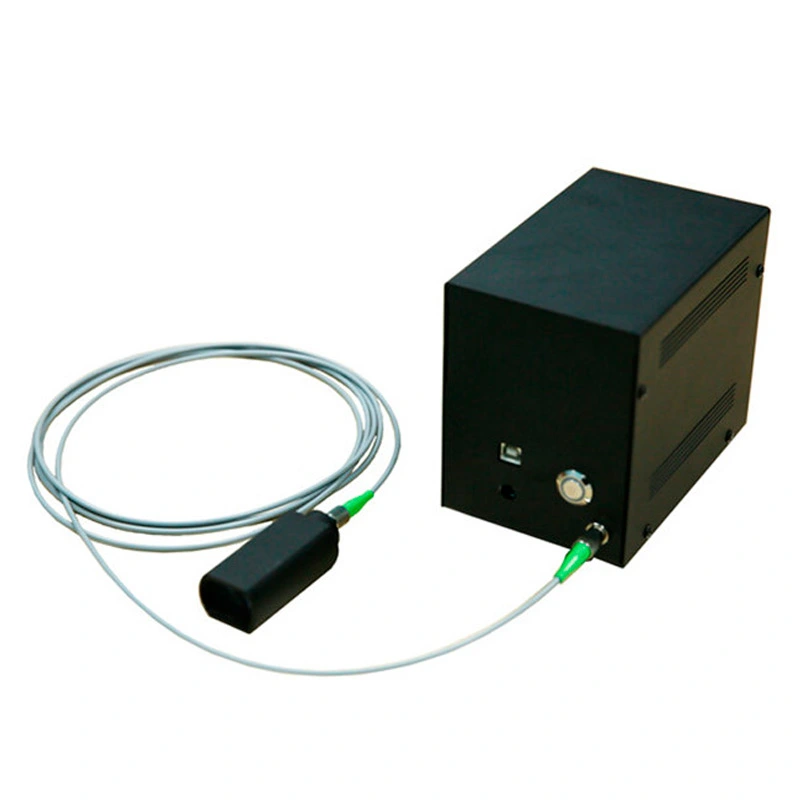

It is applied to precisely measure flat glass thickness. This instrument is designed with high measurement accuracy, small size, simple operation and convenient to carry. It is mainly composed of measuring head, controller and optical fiber. A specific color-coded lens is used to generate axial dispersion of the white light, and the reflected signal of the measured workpiece is analyzed by the spectrometer to analyze the confocal light wave signal. Finally, the measured displacement of the workpiece is calculated by the wavelength and displacement conversion curve.


Features of Glass Thickness Gauge


  • Strong Adaptability: Our system is designed to seamlessly integrate into various industrial environments, from electronics to automotive and beyond. Whether for small-scale operations or large industrial setups, our system scales effortlessly to meet your needs.

  • High Precision: Utilizes state-of-the-art sensors and algorithms to deliver precise measurements and accurate results. Ensures that every product meets stringent quality standards.

  • Strong Stability: Built with high-quality materials and components to withstand rigorous use and harsh industrial conditions.

  • High Sensitivity: High-sensitivity sensors capture even the smallest variations and anomalies, ensuring thorough inspection and quality control.


Specifications

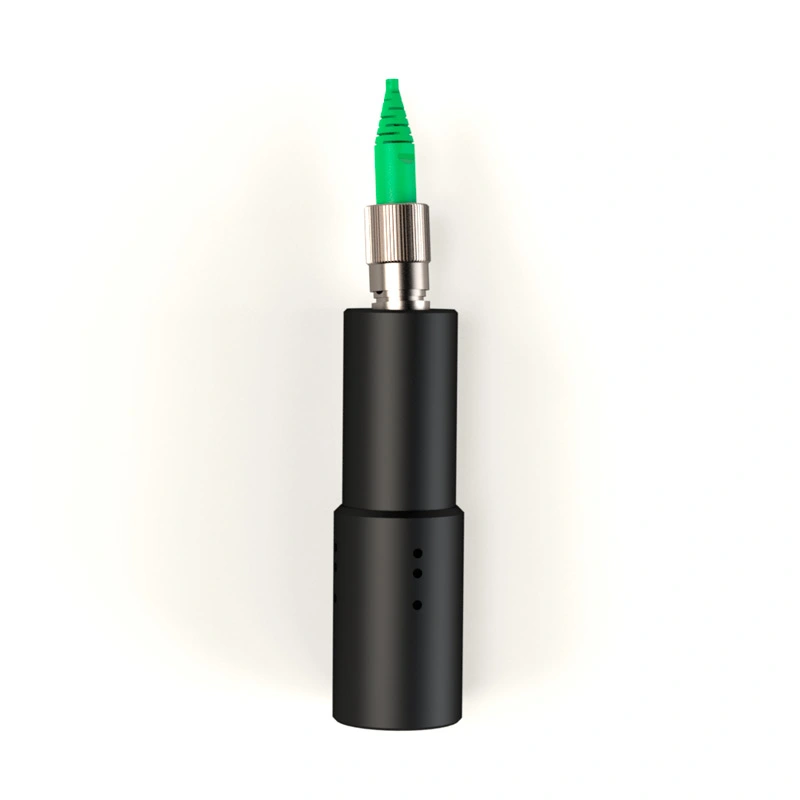

Measuring probe

Model No.

CDS-2001.5

Working distance

20mm

Measuring range

±0.75mm

Linearity

±0.6μm (max deviation after calibration under full scale measurement)

Resolution

0.05μm (10 times average fluctuation at the center measuring range)

Spot size

35μm (theoretical spot diameter at the center measuring range)

Repeated accuracy

0.6μm (repeat picking and placing samples 50 times)

Overall size

Φ20*69mm

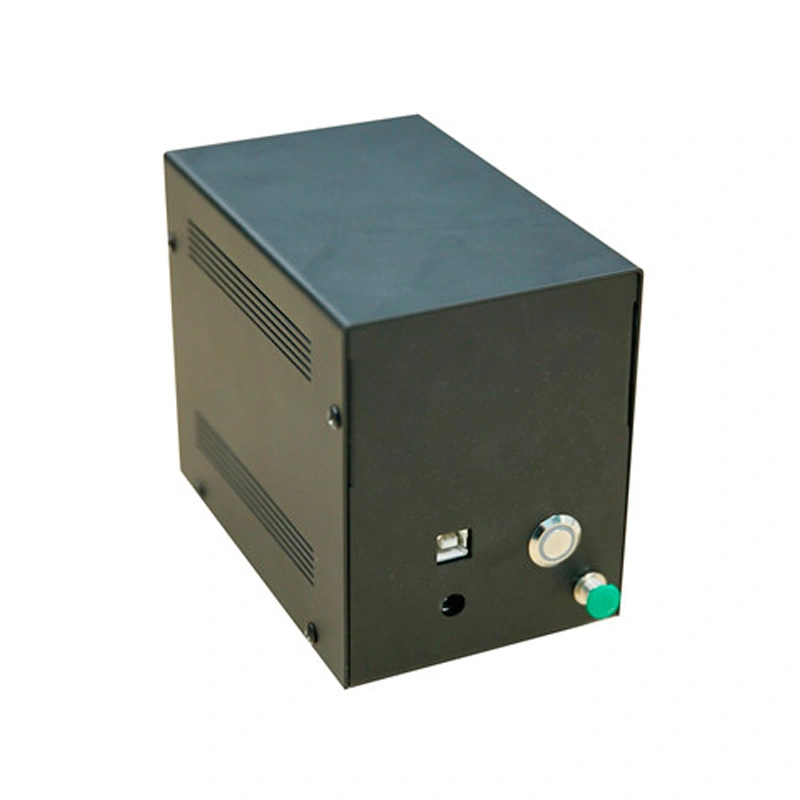

Controller

Model No.

CDS-5508

PC interface

USB

Communication interface

serial port

Rated voltage

DC24V

Rated current

1A

Overall size

149mm×96mm×122mm
