thickness checking machine

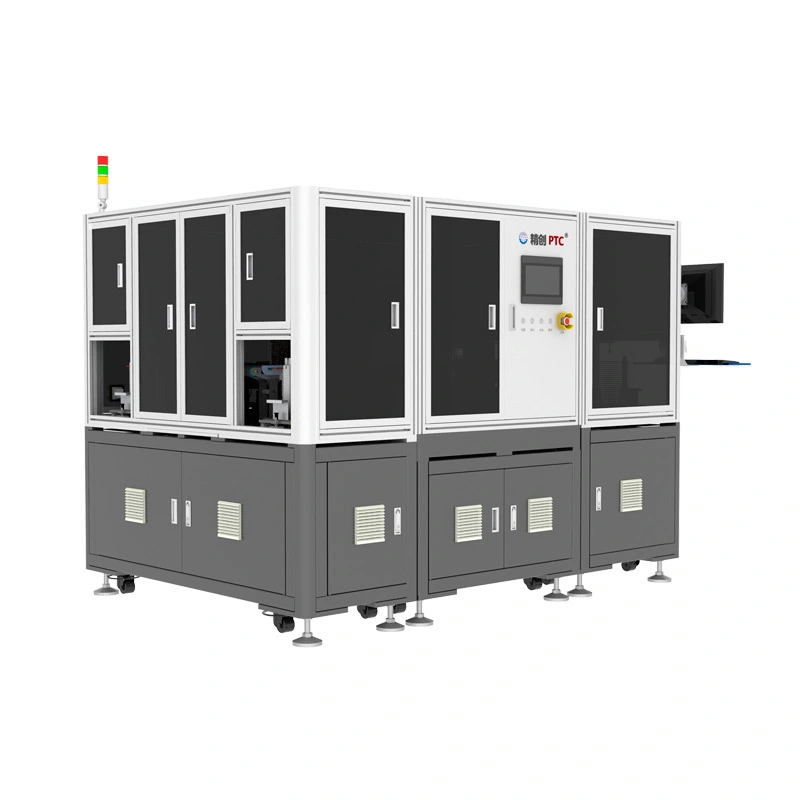

Ceramic Substrate Flatness And Thickness Detection Equipment

It is a set of automatic systems for ceramic substrate thickness and warpage detection. Loading machine, AOI detecting machine, NG automatic sorting, unloading machine and other workstations are included. Thus the equipment can significantly improve the detection rate, and production efficiency and save production costs, realizing one-stop automatic operation.


Features of Ceramic Substrate Flatness And Thickness Detection Equipment


  • Batch loading, automatic inspection and sorting. Non-stop loading and unloading capabilities reduce downtime and enhance productivity.

  • Flatness and warpage detection and classification.

  • Templates can be added for different types of products, and detection parameters can be set.

  • Software data management: data query, data export, data analysis.

  • User-friendly operation experience: software is easy to operate, intuitive and visualized.


Specifications


Technical Parameter

CT

11.4s/pcs

Overall size

2500mm(L)×1700mm(W)×1800mm(H)

Voltage

220V

Power consumption

about 6KW

Air pressure

0.6MPa
