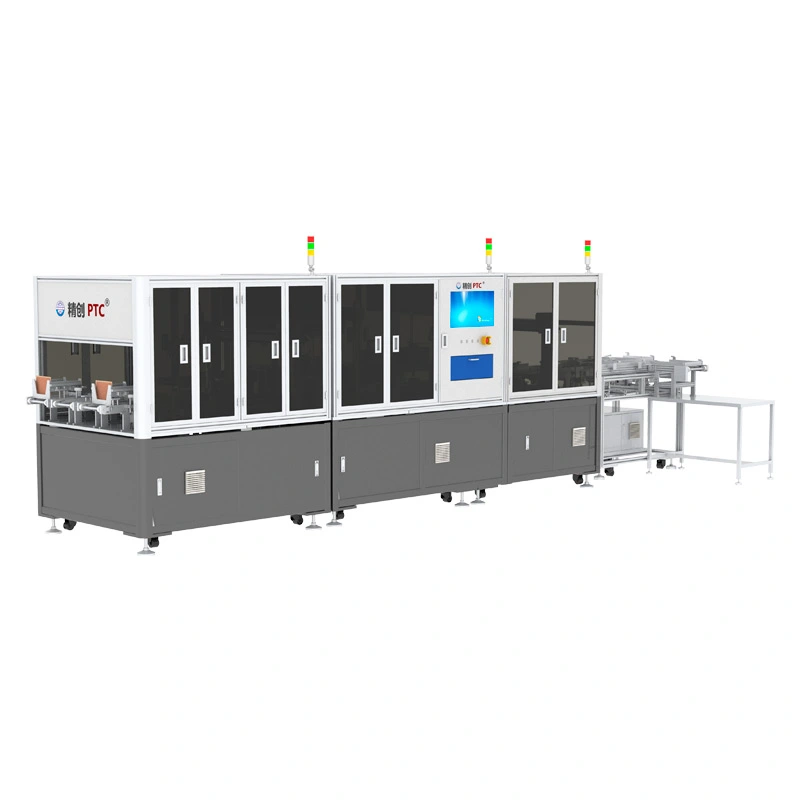

AMB Solder Defect Automatic Inspection Equipment

This equipment is a self-innovated developed automatic system for AMB defect inspection, including loading machine, AOI machine, unloading machine and workstation. It can greatly improve the product detection rate, thereby improving production efficiency for enterprises and save production costs, realizing one-stop automatic operation.


Material frame for testing products will placed in batches into the loading machine. And the empty material frames will automatically flow into the unloading machine after the product is loaded. The AOI machine scans the upper and lower surface with the incoming products, and inspects various defect sizes and marks defect position coordinates, judges OK and NG products automatically, then sorts them into different ports of the unloading machine.


Features of AMB Solder Defect Automatic Inspection Equipment


  • AOI function: automatic detection of solder residue and other defects;

  • Automatic operation: batch loading, automatic detection and sorting;

  • Simultaneous defect scanning in both surface: Defects on the upper and lower substrate surfaces can be injected at the time. The defects will be marked with accurate size and position coordinates;

  • Strong compatibility: Template creation for different types of substrates to set detection parameters;

  • Detection data management: data query, data export, data analysis and data can be docked to factory MES;

  • User-friendly operation experience: Software is easy to operate, intuitive and visualized.


Specifications

Model No.

DE-AMB

Detection accuracy

50μm

Defect inspection range

solder residue and other defects

CT

450 pcs/h

Overall size

4630mm(L)×1300mm(W)×2000mm(H)

Overall weight

about 2800kg

Voltage

220V

Power consumption

12KW
