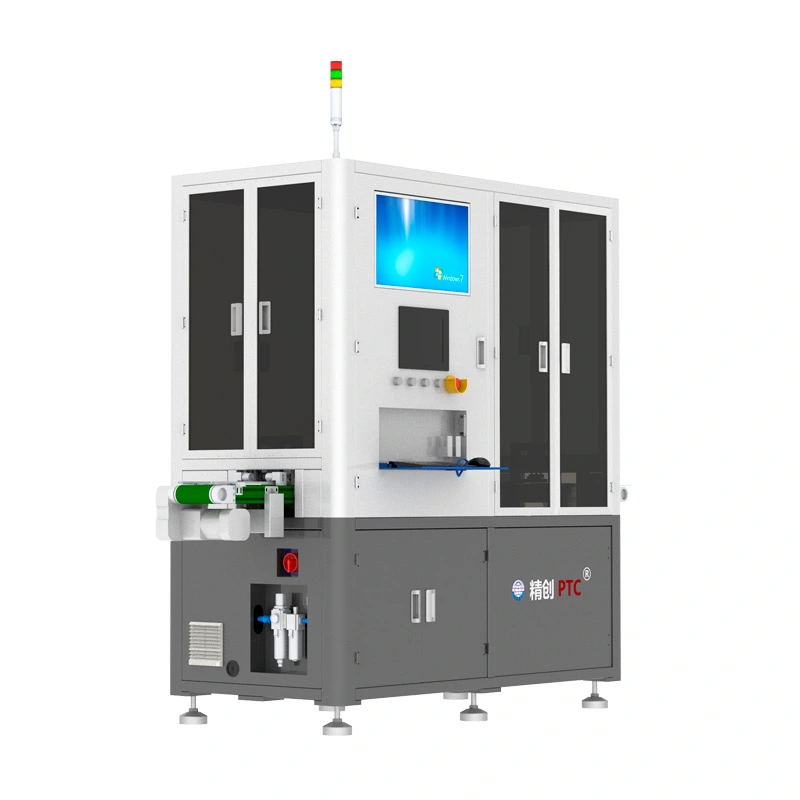

Chip Tray Defect Inspection Equipment

Quality inspection equipment can achieve online inspection of defects in plastic products with high efficiency and high quality, such as scratches, roll marks, dents, roughness, ripples, etc. This equipment can significantly reduce the intensity of manual labor, quality risks and losses, thus enhancing enterprise market competitiveness. It is applied to new energy field, information and communication equipment field, smart grid field, etc.

Features of Chip Tray Defect Inspection Equipment


  • Transfer servo gantry structure. The product flows on the belt line to complete the inspection.

  • The upper and lower cameras work simultaneously, thus ensuring high inspection efficiency.

  • The equipment is supplied with customized software and deep learning algorithms, which are powerful and easy to use.


Specifications


Technical Parameter

Sample size

323mm(L)*136mm(W)*8mm(H)

Inspection efficiency

2s/pcs

Missing rate

≤ 0.5% ( defect size≥0.5mm)

False rate

≤15%

( the total number of false points in a single measurement≥100)

Camera lens

2K line scan camera

Light source

24V light source

Dimension

1660mm(L)*700mm(W)*2000mm(H) (light tower is not included)

Overall weight

500kg

System

Windows10

Power supply

1PH AC220V 50HZ

Air pressure

0.5MPA
