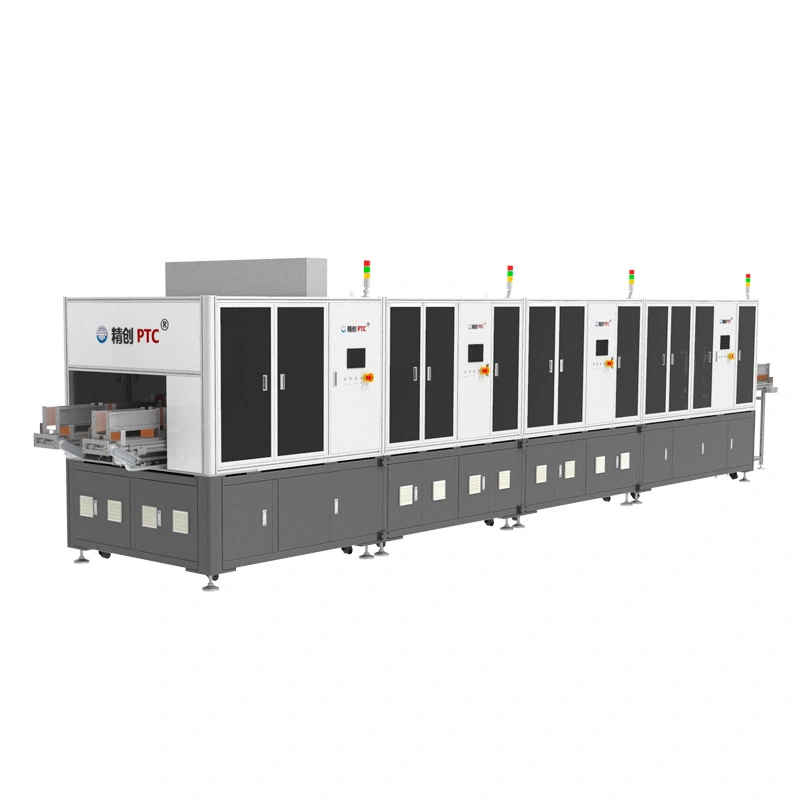

AMB/DBC Automatic Film Repairing Equipment

It is an innovatively designed automatic inspection system for AMB dry film defect inspection, including a loading machine, AOI machine, dry film repair machine, unloading machine and workstation. It can automatically identify and repair copper deficiency on dry film. By doing so, this equipment greatly improves the product detection rate, thereby improving production efficiency for enterprises and saving production costs, realizing one-stop automatic operation.


Features of AMB/DBC Automatic Film Repairing Equipment


  • AOI function: automatic detection of dry film residue, dry film copper exposure, dry film hole defects, and automatic repair of dry film copper exposure;

  • Automatic operation: batch loading, automatic detection and sorting; Defects on the upper and lower substrate surfaces can be detected at one time and automatically repair defects on front and back side;

  • Strong compatibility: Template creation for different types of substrates to set detection parameters;

  • Detection data management: data query, data export, data analysis and data can be docked to factory MES;

  • User-friendly operation experience: Software is easy to operate, intuitive and visualized.


Specifications


Model No.

DE-AMB100

Detection object

AMB dry film product

Detection accuracy

50μm

CT

≥500pcs/h

Detection rate

≥99.5%

Overall size

10000mm (L)×1620mm (W)×2000mm (H)
