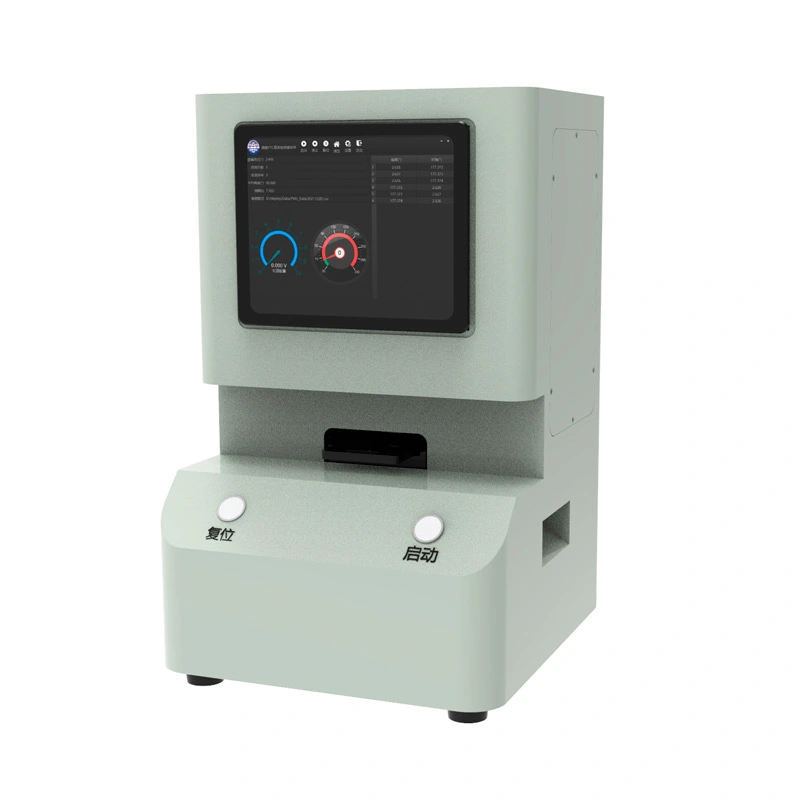

Polarizer Sheet Axis Measuring Instrument

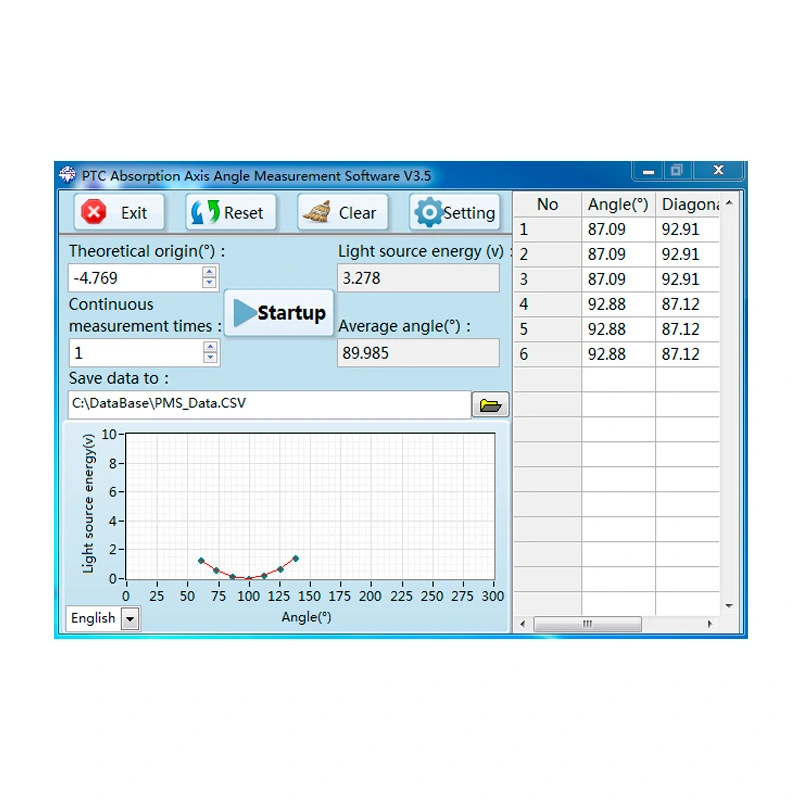

This measuring instrument uses polarized light photoelectric detection technology. The angle of the absorption axis of the polarizer can be measured single-time and multi-time continuously by manually placing the polarizer, and the results can be displayed in real-time. It can save a large amount of test data and has various functions, including data query, analysis of optical axis angle distribution, and data report export, etc.


Features of Polarizer Sheet Axis Measuring Instrument


  • It adopts high-precision imported motors with extremely high angular resolution, which can effectively ensure measurement accuracy.

  • The sample carrier locates automatically, so as to reduce human interference factors and achieve high accuracy in repeated positioning.

  • When selecting the dual polarization module mechanism, the sample type can be preselected to achieve optical axis measurement of polarizers and other optical films.


Specifications


Model No.

OI-OAM

NMV-FAM

Measurement angle range

0-180° (polarizer)

0-180°( polarizer)

0-90° (compensation film)

0-90° ( release film)

Detecting speed

about 15s/pcs

about 10s/pcs

Sample positioning mode

automatic positioning(Magnet)

visual positioning

Display

industrial tablet

computer monitor

Overall dimension

424(L)*304(W)*558(H)mm

324(L)*302(W)*496(H)mm

Data export mode

USB kit

Power supply

AC220 V 50Hz

Repeating accuracy±0.05°
Sample loading waymanual placement
