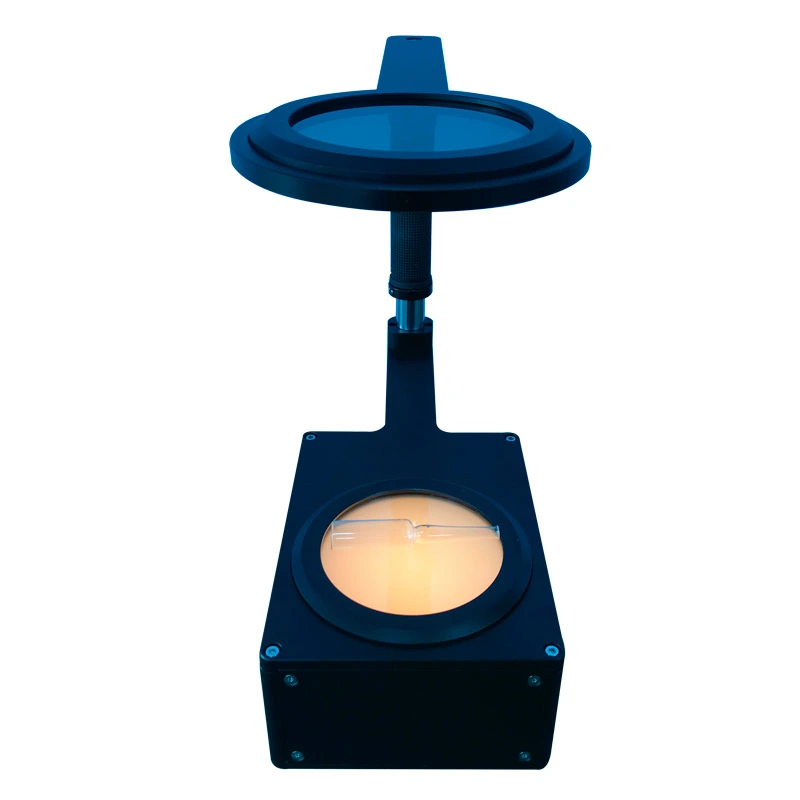

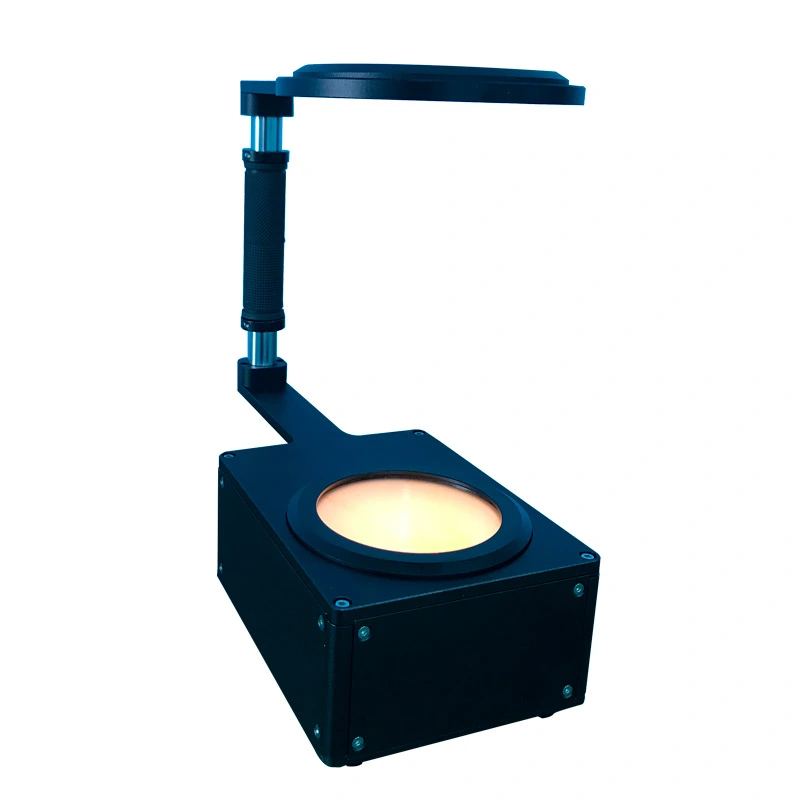

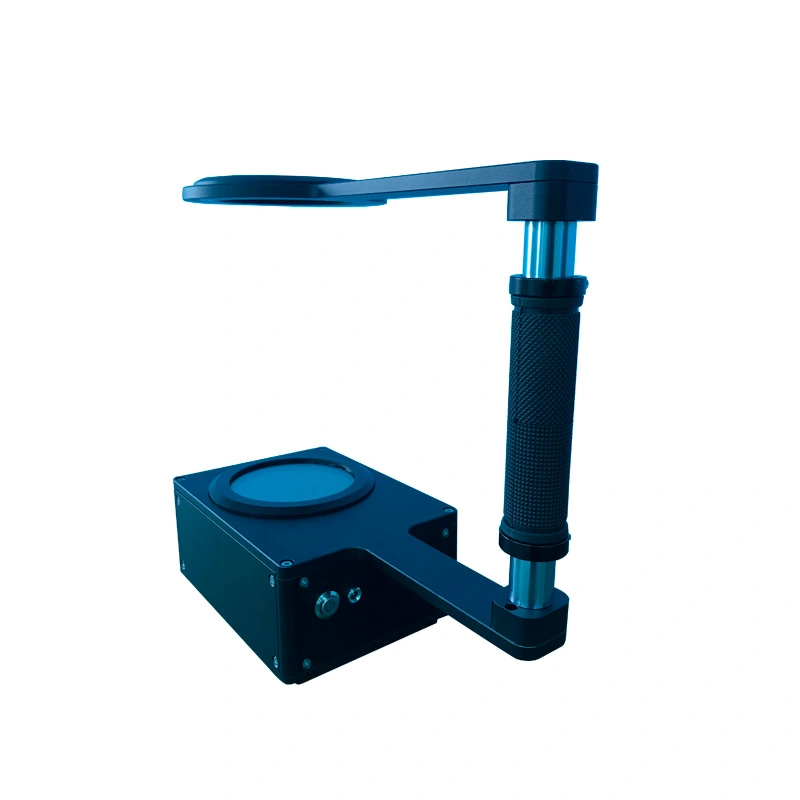

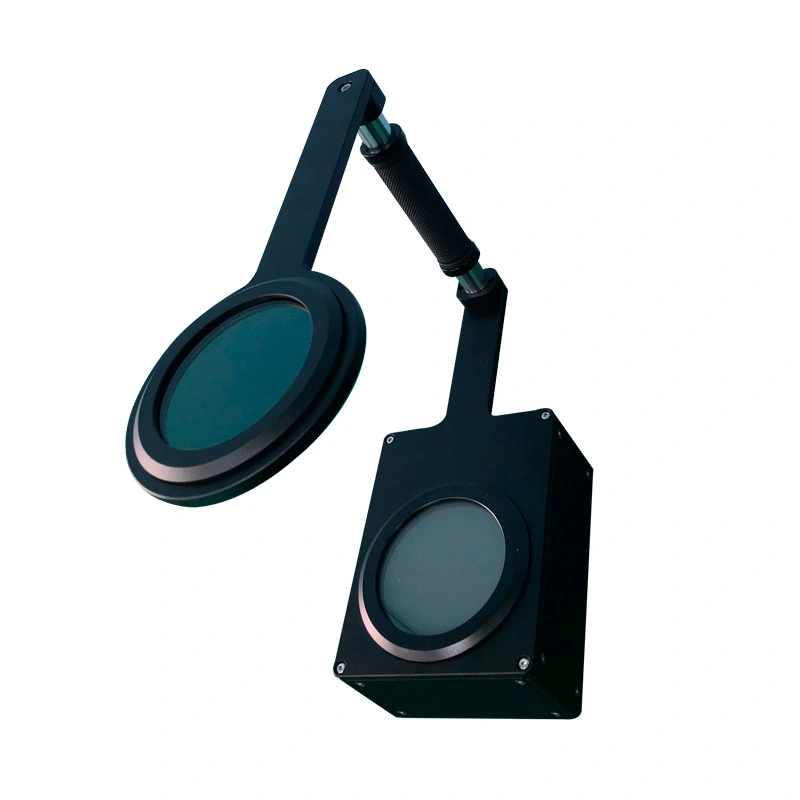

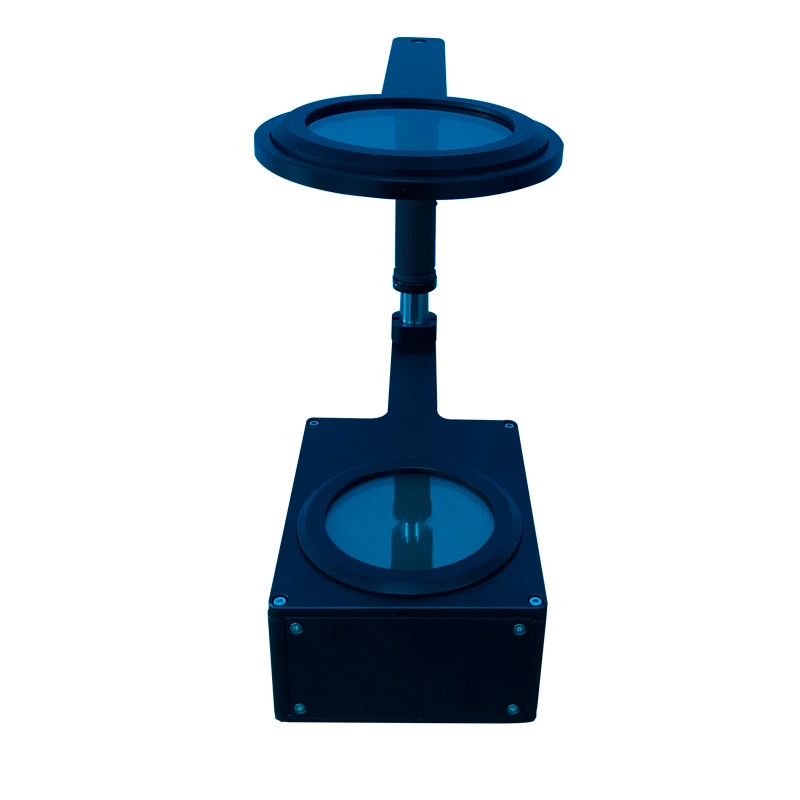

Portable Polariscope

A portable polariscope is a compact, handheld device used to analyze the optical properties of transparent materials, such as glass and certain plastics. It operates on the principle of polarized light, which helps in identifying internal stress, inclusions, and other structural characteristics that are not visible under normal lighting conditions.


Features of Portable Polariscope


  • Portability: Easy to carry and use in various settings, from fieldwork to laboratory.

  • Non-Destructive: No damage to the sample being analyzed.

  • Quick Analysis: Provides immediate visual feedback on the optical properties of the material.

  • Two Power Supply Modes: Equipped with 2 kinds of power supply methods, wall socket and built-in rechargeable battery.


Specifications


Model No.

PSV-202S

Retardation of full-wave plate

560nm

Polarizer

Diameter 95mm

Analyzer

Diameter 95mm

Measuring height

200mm

Overall size

140*190*295mm

Voltage

12VDC ( supplied with an AC/DC adaptor )

Light source

White LED module

Net weight

2.5KG
